Dimension of DIN934 Hex Nuts

DIN934 is a standard for hex nuts used in metric applications. The dimension of DIN934 hex nuts depend on the specific size and class of nut you are referring to. Here are some general dimensions for DIN 934 hex nuts:

1. Thread Size (Nominal Diameter): This is the size of the screw or bolt that the hex nut is designed to fit. For example, M6, M8, M10, M12, etc. The “M” stands for metric.

2. Across Flats (AF) or Wrench Size: The distance across the flat sides of the hexagonal shape. This dimension corresponds to the size of the wrench or socket needed to tighten or loosen the nut. For example, an M6 DIN 934 hex nut typically has an AF of 10mm, while an M12 hex nut has an AF of 19mm.

3. Height (Thickness): The thickness or height of the hex nut can vary depending on the class or type of nut. For example, a standard hex nut may have a height that is roughly 0.8 times the nominal diameter.

4. Pitch: This specifies the distance between threads. It is related to the thread size and is used to determine the height of the nut.

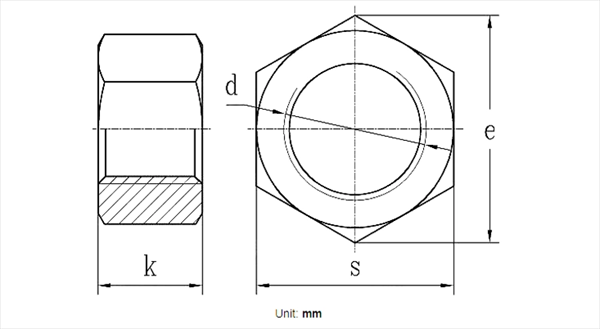

Dimension of DIN934 HEX NUT
Thread Size		M1	M1.2	M1.4	M1.6	(M1.7)	M2	(M2.3)	M2.5	(M2.6)	M3	(M3.5)	M4	M5	M6	(M7)	M8
Pitch	Coarse thread	0.25	0.25	0.3	0.35	0.35	0.4	0.45	0.45	0.45	0.5	0.6	0.7	0.8	1	1	1.25
S	max	2.5	3	3	3.2	3.5	4	4.5	5	5	5.5	6	7	8	10	11	13
	min	2.4	2.9	2.9	3.02	3.38	3.82	4.32	4.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73
K	max	0.8	1	1.2	1.3	1.4	1.6	1.8	2	2	2.4	2.8	3.2	4	5	5.5	6.5
	min	0.55	0.75	0.95	1.05	1.15	1.35	1.55	1.75	1.75	2.15	2.55	2.9	3.7	4.7	5.2	6.14
e	min	2.71	3.28	3.28	3.41	3.82	4.32	4.88	5.45	5.45	6.01	6.58	7.66	8.79	11.05	12.12	14.38
per 1000 units ≈ kg		0.03	0.054	0.063	0.076	0.1	0.142	0.2	0.28	0.72	0.384	0.514	0.81	1.23	2.5	3.12	5.2
Thread Size		M10	M12	(M14)	M16	(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48
Pitch	Coarse thread	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5
S	max	17	19	22	24	27	30	32	36	41	46	50	55	60	65	70	75
	min	16.73	18.67	21.67	23.67	26.16	29.16	31	35	40	45	49	53.8	58.8	63.1	68.1	73.1
K	max	8	10	11	13	15	16	18	19	22	24	26	29	31	34	36	38
	min	7.64	9.64	10.3	12.3	14.3	14.9	16.9	17.7	20.7	22.7	24.7	27.4	29.4	32.4	34.4	36.4
e	min	18.9	21.1	24.49	26.75	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6
per 1000 units ≈ kg		0.03	0.054	0.063	0.076	0.1	0.142	0.2	0.28	0.72	0.384	0.514	0.81	1.23	2.5	3.12	5.2
Thread Size		(M52)	M56	(M60)	M64	(M68)	M72	(M76)	M80	(M85)	M90	M100	M110	M125	M140	M160
Pitch	Coarse thread	5	5.5	5.5	6	6	/	/	/	/	/	/	/	/	/	/
S	max	80	85	90	95	100	105	110	115	120	130	145	155	180	200	230
	min	78.1	82.8	87.8	92.8	97.8	102.8	107.8	112.8	117.8	127.5	142.5	152.5	177.5	195.4	225.4
K	max	42	45	48	51	54	58	61	64	68	72	80	88	100	112	128
	min	40.4	43.4	46.4	49.1	52.1	56.1	59.1	62.1	66.1	70.1	78.1	85.8	97.8	109.8	125.5
e	min	88.25	93.56	99.21	104.86	110.51	116.16	121.81	127.46	133.11	144.08	161.02	172.32	200.57	220.8	254.7
per 1000 units ≈ kg		1220	1420	1690	1980	2300	2670	3040	3440	3930	4930	6820	8200	13000	17500	26500
