DIN 963 Slotted Countersunk Screws
DIN 963 Slotted Countersunk Screws are designed for assemblies where the fastener needs to sit within the surface while retaining a simple, traditional drive. The 90° countersunk head allows the screw to seat into a matching countersunk hole, while the straight slot provides direct access with a conventional flat-blade screwdriver. The combination is particularly useful for finished panels, covers, hardware components, light mechanical assemblies, and other parts where a raised screw head would be undesirable. Unlike cross-recessed designs, the straight slot has a very simple drive geometry and can be useful where traditional tooling or an existing product design calls for a slotted fastener.
DIN 963 screws are available in stainless steel, carbon steel, and other material options, with surface finishes selected according to the operating environment. The countersunk hole must provide enough seating depth without unnecessarily reducing the material thickness. For applications requiring higher installation torque or frequent power-tool use, a cross-recessed or more torque-resistant drive may be a better choice.


Specification:
| Parameter | Specification |
|---|---|
| Standard | DIN963 |
| Product Type | Slotted Countersunk Head Screw |
| Head Type | Countersunk Head |
| Head Angle | 90° |
| Drive | Slotted Straight Slot |
| Thread Tolerance | 6g |
| Size Rangle | M1.6-M12 |
| Material | Carbon Steel,Alloy Steel,Stainless Steel |
| Steel Property Class | ISO 898-1 |
| Stainless Steel Property Class | ISO 3506-1 |
| Inspection | Dimensions,Thread,Drive,Head Angle,Mechanical Property,Coating |

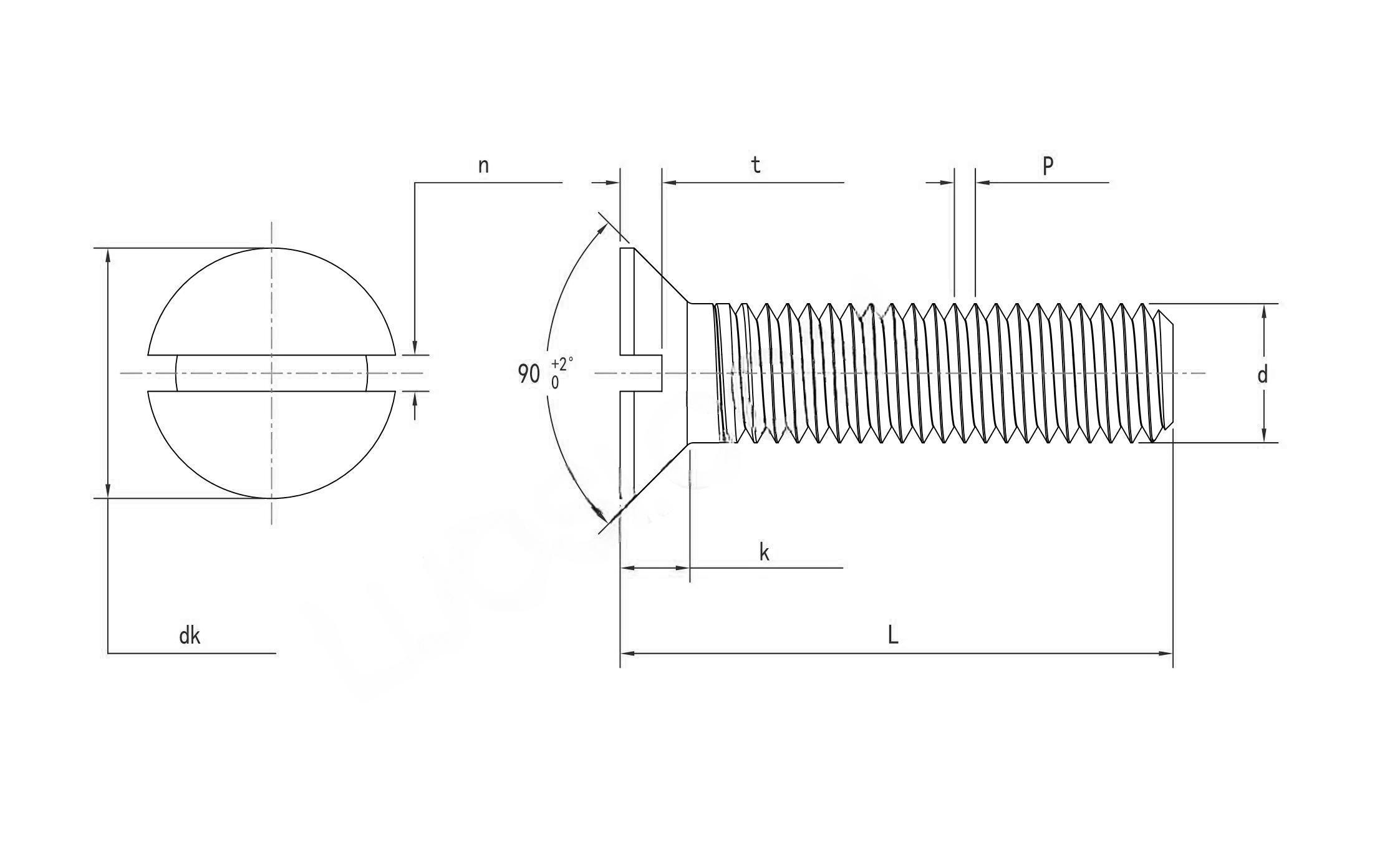

Dimension Chart of DIN 963 Slotted Countersunk Screws:

| Thread Diameter | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
| P | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
| dk max | 3 | 3.8 | 4.7 | 5.6 | 7.5 | 9.2 | 11 | 14.5 | 18 | 22 |
| dk min | 2.86 | 3.5 | 4.4 | 5.3 | 7.14 | 8.84 | 10.57 | 14.07 | 17.57 | 21.48 |
| k max | 0.96 | 1.2 | 1.5 | 1.65 | 2.2 | 2.5 | 3 | 4 | 5 | 6 |
| n min | 0.46 | 0.56 | 0.66 | 0.86 | 1.06 | 1.26 | 1.66 | 2.06 | 2.56 | 3.06 |
| n max | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.51 | 1.91 | 2.31 | 2.81 | 3.31 |
| t min | 0.32 | 0.4 | 0.5 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 2 | 2.4 |
| t max | 0.45 | 0.6 | 0.7 | 0.85 | 1.1 | 1.3 | 1.6 | 2.1 | 2.6 | 3 |
- RELATED SCREW LISTS:
- Slotted Pan Head Screw
- DIN85 Slotted Pan Head Machine Screws
- ASME B18.6.3 Slotted Pan Head Screw
- Slotted Countersunk Head Screw
- DIN963 Slotted Screw
- ASME B18.5 Slotted Screw
- Slotted Pan Head Captive Screw
- GB830 Slotted Shoulder Screw
- GB831 Slotted Shoulder Screw
- DIN316 Wing Screw
- Knurled Thumb Screws
Application of DIN 963 Slotted Countersunk Screws:
Metal Hardware & Fabricated Parts
DIN 963 screws are suitable for metal brackets, hinges, small hardware components, fabricated parts, and sheet-metal assemblies where a recessed screw head is preferred and installation can be carried out with a conventional flat-blade screwdriver.
Machinery Components
They can be used in machine guards, covers, mechanical brackets, guide components, and small equipment assemblies where the fastener needs to remain within the component profile and the connection does not require high installation torque.
Electrical & Instrument Components
The compact countersunk design can be useful for electrical enclosures, instrument housings, control components, and mounting hardware where a clean surface and straightforward access to the fastener are desirable.
Selection Tip
DIN 963 is best selected when both the 90° countersunk head and straight-slot drive match the assembly requirements. For high-volume production or applications requiring higher tightening torque, a cross-recessed or more torque-resistant drive may be a better alternative.
