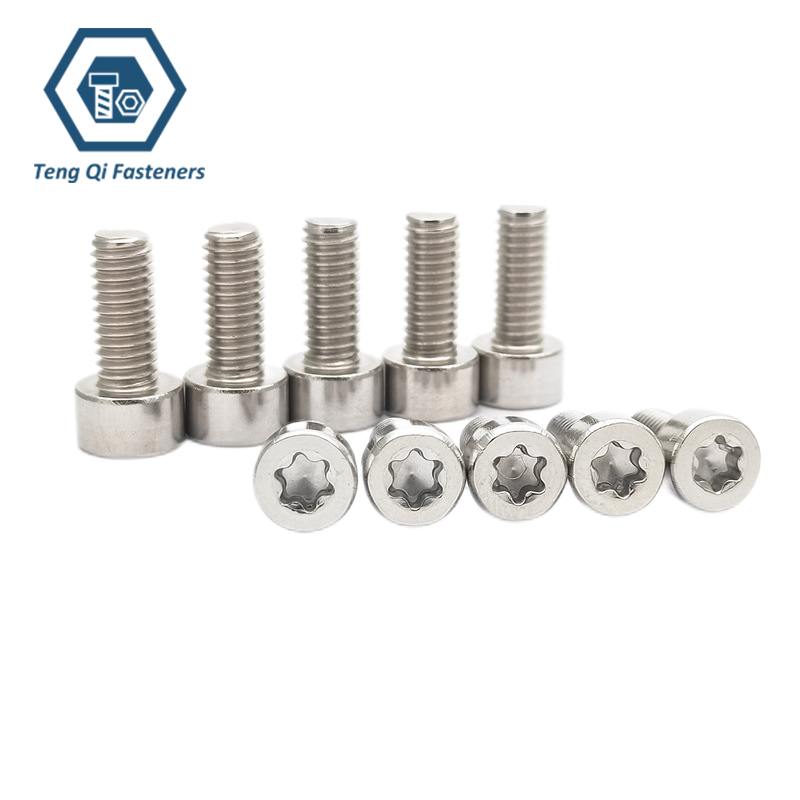

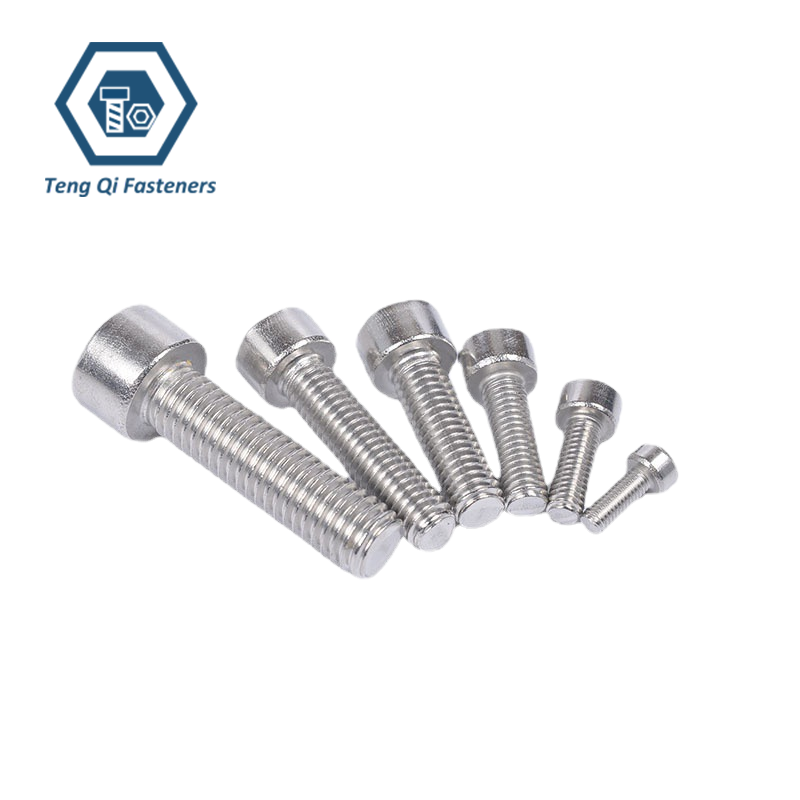

ISO14579 Stainless Steel Torx Socket Head Cap Screw Supplier In China
Ningbo Teng Qi Fasteners Co., Ltd. is a professional manufacturer and supplier of ISO 14579 stainless steel hexalobular (Torx) socket head cap screws, specializing in high-precision fastening solutions for global industrial applications. With extensive experience in fastener production, we focus on delivering consistent quality, stable performance, and reliable supply for international customers across multiple industries.
Our products are manufactured in strict accordance with ISO 14579 standards, using high-quality stainless steel materials such as A2 (304) and A4 (316). Compared with traditional hex socket designs, the hexalobular (Torx) drive system defined by ISO 10664 offers improved torque transmission and reduced cam-out risk, making it particularly suitable for high-torque and automated assembly environments.
Production is supported by advanced cold forming technology, precision tooling, and comprehensive quality control processes. We ensure accurate dimensional conformity, stable mechanical properties, and precise thread tolerances in accordance with ISO metric standards. Our product range covers sizes from M2 to M20, meeting the needs of a wide variety of industrial applications.
To meet different environmental and performance requirements, we provide stainless steel grades in accordance with ISO 3506, including A2-70 and A4-80, along with passivation and optional anti-galling surface treatments. These enhancements improve corrosion resistance and assembly stability, especially in demanding operating conditions.
Specification:
| Product name | ISO14579 Stainless Steel Torx Socket Head Cap Screw |
|---|---|
| Thread Diameter: | M2-M20 |
| Thread Standard: | ISO261/ISO965 Tolerance |
| Material: | SS304 SS316 |
| Surface Treatment | Plain/Nylok Patch/Thread Locking(3M, Loctite，Precote) |
| Packaging: | Boxes/cartons into wooden pallets |
- RELATED BOLT LISTS:
- Countersunk Head Torx Screw
- Button Round Head Torx Screw
- Cylindrical Head Torx Screw
- Countersunk Head Torx Screw with Pin
- Cylindrical Head Torx Screw with Pin
- Hexagon Socket Countersunk Head Cap Screw
- Hexagon Socket Button Head Screws
- Hexagon Socket Head Cap Screw
- Flat Countersunk Head Screw with Cross Recess
- Pan Head Screw with Cross Recess
Dimension Chart of ISO14579 Stainless Steel Torx Socket Head Cap:
| Mon | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| dk max | 6.72 | 8.96 | 11.2 | 13.44 | 17.92 | 22.4 | 26.88 | 30.8 | 33.6 | 40.32 |
| dk min | 5.54 | 7.53 | 9.43 | 11.34 | 15.24 | 19.22 | 23.12 | 26.52 | 29.01 | 36.05 |
| e min | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.863 | 9.149 | 11.429 | 11.429 | 13.716 |
| k max | 1.86 | 2.48 | 3.1 | 3.72 | 4.96 | 6.2 | 7.44 | 8.4 | 8.8 | 10.16 |
| s max | 2.08 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | 10.175 | 12.212 |
| s min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 10.025 | 12.032 |
| t min | 1.1 | 1.5 | 1.9 | 2.2 | 3 | 3.6 | 4.3 | 4.5 | 4.8 | 5.6 |
Application of ISO14579 Stainless Steel Torx Socket Head Cap Screw:
ISO 14579 Torx socket head cap screws are widely used in automotive systems, industrial machinery, electronic equipment, marine engineering, and structural applications where strength, reliability, and corrosion resistance are essential. As a dedicated ISO 14579 supplier, we are committed to providing stable quality, responsive service, and customized fastening solutions based on customer drawings and technical requirements.
| Application | Details |
|---|---|
| Automotive industry: | Used in engine components, chassis systems, electronic control units, interior assemblies, and other precision fastening applications where vibration resistance, high torque transmission, and assembly reliability are required. |
| Industrial machinery & equipment: | Applied in mechanical structures, equipment housings, automation systems, and production machinery, where durable fastening performance and consistent assembly quality are essential under heavy-duty or continuous operation conditions. |
| Marine & offshore engineering: | Suitable for shipbuilding, coastal installations, and offshore structures, especially in A4 (316) stainless steel versions, where excellent corrosion resistance against saltwater and harsh environments is required. |
| Electronics & electrical equipment: | Used in control cabinets, enclosures, instrumentation, and precision electronic devices, where compact design, secure fastening, and stable torque performance are important. |
| Medical equipment: | Used in non-implant medical devices and laboratory equipment requiring clean, corrosion-resistant fasteners. |
