ASME/ANSI B18.5 80°Slotted Countersunk Head Bolts Manufacturer In China

Ningbo Teng Qi Fasteners Co., Ltd is committed to producing high-quality ASME/ANSI B18.5 80°Slotted Countersunk Head Bolts to provide customers with reliable solutions. We have advanced production equipment, including wire drawing machines, cold heading machines, hot forging machines, automatic thread rolling machines, heat treatment equipment and electroplating production lines, to ensure the efficiency and quality stability of the product production process.

In addition to advanced production equipment, we are also equipped with professional testing equipment and strict testing processes, including tensile testing machines, metallographic analyzers, etc. Through these testing methods, we are able to conduct comprehensive quality inspections on products to ensure that product quality is stable and reliable and meets customer needs and standards.

Our ASME/ANSI B18.5 80° Slotted Countersunk Head Bolts are widely used in construction, furniture manufacturing, machinery manufacturing, automotive, electronics, aerospace and other industries, providing reliable connection solutions for various application scenarios. We are committed to providing customers with high-quality, reliable products to meet their various needs.

Steel American Standard ASME B18.5 Zinc Plated 80°Slotted countersunk Head Bolts

Stainless Steel American Standard ASME B18.5 80°Slotted countersunk Head Bolts

Specification of ASME/ANSI B18.5 80°Slotted Countersunk Head Bolts:

The specification of ASME/ANSI B18.5 80°Slotted Countersunk Head Bolts include the following details:

Product name	ASME/ANSI B18.5 80°Slotted Countersunk Head Bolts
Thread Diameter:	1/4”-1-1/2“
Grade:	A307, SAE J429, F468, F593
Material:	Steel: Q195, Q235,C45,40CR,35CRMO,42CRMO Stainless Steel: SS304/SS316
Surface Treatment	Zinc Plated/Plain/Black Oxidation/HDG/Dacromet
Packaging:	Boxes/cartons into wooden pallets
MOQ:	1Ton/Size

Dimension Chart of ASME/ANSI B18.5 80°Slotted Countersunk Head Bolts:

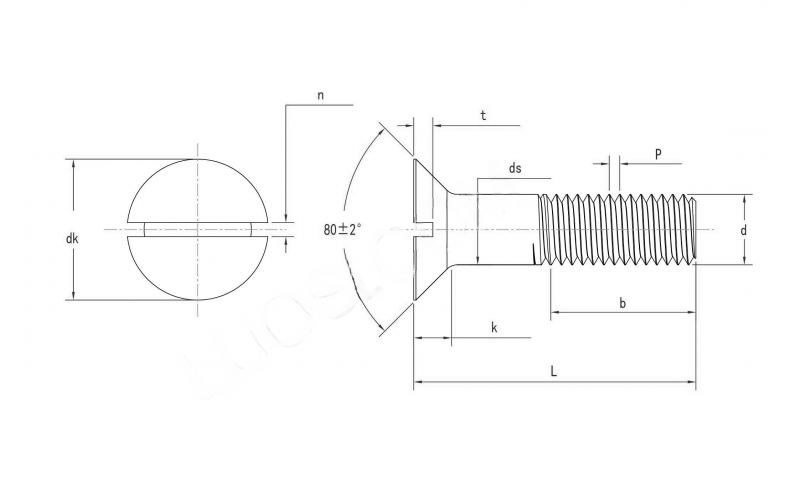

ASME B18.5 80°Slotted Countersunk Head Bolts Dimension Chart Drawing

Thread Diameter	1/4	5/16	3/8	7/16	1/2	5/8	3/4	7/8	1	1-1/8	1-1/4	1-3/8	1-1/2
P	20\|28\|32	18\|24\|32	16\|24\|32	14\|20\|28	13\|20\|28	11\|18\|24	10\|16\|20	9\|14\|20	8\|12\|20	7\|12\|18	7\|12\|18	12\|18	6\|12\|18
ds max	0.26	0.324	0.388	0.452	0.515	0.642	0.768	0.895	1.022	1.149	1.277	1.404	1.531
ds min	0.237	0.298	0.36	0.421	0.483	0.605	0.729	0.852	0.976	1.098	1.223	1.345	1.47
dk max	0.493	0.618	0.74	0.803	0.935	1.169	1.402	1.637	1.869	2.104	2.337	2.571	2.804
dk min	0.445	0.558	0.668	0.726	0.845	1.066	1.285	1.511	1.735	1.962	2.187	2.414	2.64
k max	0.15	0.189	0.225	0.226	0.269	0.336	0.403	0.47	0.537	0.604	0.671	0.738	0.805
k min	0.131	0.164	0.196	0.196	0.233	0.292	0.349	0.408	0.466	0.525	0.582	0.641	0.698
n max	0.075	0.084	0.094	0.094	0.106	0.133	0.149	0.167	0.188	0.196	0.211	0.226	0.258
n min	0.064	0.072	0.081	0.081	0.091	0.116	0.131	0.147	0.166	0.178	0.193	0.208	0.24
t max	0.068	0.086	0.103	0.103	0.103	0.137	0.171	0.206	0.24	0.257	0.291	0.326	0.36
t min	0.045	0.057	0.068	0.068	0.068	0.091	0.115	0.138	0.162	0.173	0.197	0.22	0.244

Application of ASME/ANSI B18.5 80°Slotted Countersunk Head Bolts:

ASME/ANSI B18.5 80°Slotted Countersunk Head Bolts find extensive applications in the following areas:

Application	Details
Construction:	Slotted countersunk head bolts are used in construction projects for fastening wooden or metal components, such as beams, joists, and framing. They provide a secure and flush attachment, ensuring structural integrity and stability.
Furniture Manufacturing:	Slotted countersunk head bolts are employed in the assembly of furniture pieces, including tables, chairs, cabinets, and bed frames. They allow for easy installation and provide a sleek, finished appearance.
Machinery and Equipment:	Slotted countersunk head bolts are utilized in the manufacturing of machinery and equipment across different industries. They are suitable for securing components, housings, and panels in machinery, ensuring proper alignment and operation.
Energy Industry:	Slotted countersunk head bolts find application in electrical and electronics industries for mounting components, enclosures, and fixtures. They provide a reliable and aesthetically pleasing fastening solution for electrical panels, control boxes, and equipment housings.
