AS/NZS 2465 Australian Standard Hexagon Nuts Manufacturer In China
AS/NZS 2465 is part of the Australian/New Zealand Standard and is a specification for hex nuts. This standard specifies requirements for hexagonal nuts in terms of dimensions, materials, quality control and test methods. As a professional manufacturer of AS/NZS 2465 hexagonal nuts, we are committed to providing high-quality products and excellent service. Our production range ranges from 1/4 inch to 4 inches, covering a wide range of size needs.
We have advanced production equipment, including professional cold heading machines, hot forging machines, tapping machines, automatic chamfering machines and heat treatment production lines. These equipment ensure that we can efficiently and accurately produce hexagonal nuts that meet standard requirements.
In terms of quality, we strictly implement the quality management system to ensure that the hardness and load-bearing capacity of our products meet or exceed industry standards. We are equipped with professional testing equipment and quality control team to conduct comprehensive quality inspection and testing of products to ensure that every nut can meet customer requirements. We won the trust and praise of our customers with our competitive prices and high-quality products.
Specification of AS/NZS 2465 Australian Standard Hexagon Nuts:
The specification of AS/NZS 2465 Hexagon Nuts include the following details:
| Product name | AS/NZS 2465 Hexagon Nuts |
|---|---|
| Diameter: | 1/4"-4" |
| MOQ: | 1 Ton/Size |
| Grade: | SAE J 995 Grade 2/5/8 |
| Material: | Steel: Q195,Q235,C45,40CR,42CRMO,35CRMO |
| Surface Treatment | Zinc Plated/Plain/Black Oxidation/HDG/Dacromet |
| Packaging: | Boxes/cartons into wooden pallets |

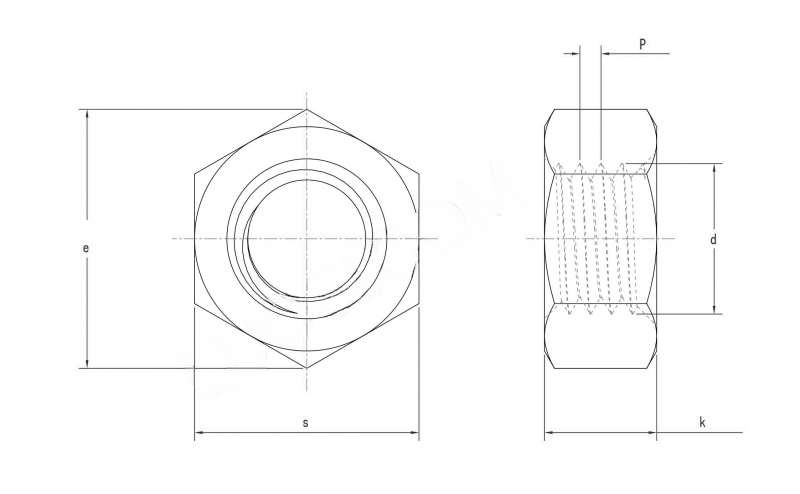

Dimension Chart of AS/NZS 2465 Australian Standard Hexagon Nuts:
| Thread Diameter | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 |
| P | 20|28|32 | 18|24|32 | 16|24|32 | 14|20|28 | 13|20|28 | 12|18|24 | 11|18|24 | 10|16|20 | 9|14|20 | 8|12|20 | 7|12|18 | 7|12|18 | 6|12|18 |
| s min | 0.428 | 0.489 | 0.551 | 0.675 | 0.736 | 0.861 | 0.922 | 1.088 | 1.269 | 1.45 | 1.631 | 1.812 | 1.994 |
| s max | 0.438 | 0.5 | 0.563 | 0.688 | 0.75 | 0.875 | 0.938 | 1.125 | 1.312 | 1.5 | 1.688 | 1.875 | 2.062 |
| e min | 0.488 | 0.557 | 0.628 | 0.768 | 0.84 | 0.982 | 1.051 | 1.24 | 1.447 | 1.653 | 1.859 | 2.066 | 2.273 |
| e max | 0.505 | 0.577 | 0.65 | 0.794 | 0.866 | 1.01 | 1.083 | 1.299 | 1.516 | 1.732 | 1.949 | 2.165 | 2.382 |
| k min | 0.212 | 0.258 | 0.32 | 0.365 | 0.427 | 0.473 | 0.535 | 0.617 | 0.724 | 0.831 | 0.939 | 1.03 | 1.138 |
| k maxk max | 0.226 | 0.273 | 0.337 | 0.385 | 0.448 | 0.496 | 0.559 | 0.665 | 0.776 | 0.887 | 0.999 | 1.094 | 1.206 |
| Thread Diameter | 1-1/2 | 1-5/8 | 1-3/4 | 1-7/8 | 2 | 2-1/4 | 2-1/2 | 2-3/4 | 3 | 3-1/4 | 3-1/2 | 3-3/4 | 4 |
| P | 6|12|18 | 6|12|18 | 5|8|12 | 6 | 4.5 | 4.5 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| s min | 2.175 | 2.35 | 2.538 | 2.722 | 2.9 | 3.263 | 3.625 | 3.988 | 4.35 | 4.713 | 5.075 | 5.438 | 5.8 |
| s max | 2.25 | 2.43 | 2.625 | 2.813 | 3 | 3.375 | 3.75 | 4.125 | 4.5 | 4.875 | 5.25 | 5.625 | 6 |
| e min | 2.48 | 2.679 | 2.893 | 3.103 | 3.306 | 3.719 | 4.133 | 4.546 | 4.959 | 5.373 | 5.786 | 6.199 | 6.612 |
| e max | 2.598 | 2.805 | 3.031 | 3.247 | 3.464 | 3.897 | 4.33 | 4.763 | 5.196 | 5.629 | 6.062 | 6.495 | 6.928 |
| k min | 1.245 | 1.364 | 1.46 | 1.567 | 1.675 | 1.89 | 2.105 | 2.319 | 2.534 | 2.749 | 2.964 | 3.178 | 3.393 |
| k maxk max | 1.317 | 1.416 | 1.54 | 1.651 | 1.763 | 1.986 | 2.209 | 2.431 | 2.654 | 2.877 | 3.1 | 3.322 | 3.545 |
- RELATED NUT LISTS:
- DIN6334 Hexagon Coupling Nuts
- ASME/ANSI B 18.2.2 Hex Slotted Nuts/Castle Nuts
- ASME/ANSI B18.2.2 Hex Flange Nuts
- Lock Nuts
- IFI145 Flange Nuts
- DIN982 Nylon Lock Nuts
- DIN985 Nylon Lock Nuts
- ASME B 18.16.6 Nylon Nuts
- HEX NUT
- JIS 1186 Hex Nuts
- DIN934 Hex Nuts
- A194 Hex Nuts
- A563 Hex Nuts
- DIN6915 Hex Nuts
- GOST 28919 Thick Hex Nuts
- GOST R 52645 Structural Hex Nuts
- GOST 5915 Hex Nut
- UNI5588 Hex Nuts
- UNI5587 Thick Hex Nuts
- UNI5713 Hex Nuts
- AS1252 Hex Nuts
- AS/NZS 2451 Hex Nuts
- AS 1112.1 Hex Nut
- DIN6330 Hex Thick Nuts
- ASME/ANSI B 18.2.2 Hex Thick Nuts
Application of AS/NZS 2465 Hex Nuts:
AS/NZS 2465 hex nuts are versatile fasteners that find application across various industries and sectors where secure and reliable fastening solutions are essential. Their compatibility with AS/NZS standards ensures quality and performance in diverse .
| Application | Details |
|---|---|
| Construction and Structural Engineering: | AS/NZS 2465 hex nuts are extensively used in construction projects for fastening structural components such as beams, columns, and trusses. They ensure the stability and integrity of buildings and structures by securely holding components together. |
| Manufacturing and Engineering: | These nuts find application in manufacturing and engineering processes for assembling machinery, equipment, and industrial components. They provide secure fastening solutions for parts and components, ensuring operational efficiency and safety. |
| Infrastructure Projects: | AS/NZS 2465 hex nuts are employed in infrastructure projects such as bridges, highways, and railway systems. They are used for fastening various structural elements, including rails, girders, and bridge decks, ensuring the structural integrity and safety of infrastructure facilities. |
| Electrical and Telecommunications: | In the electrical and telecommunications industries, these nuts are used for fastening cable trays, conduit fittings, and electrical enclosures. They provide secure mounting solutions for electrical components, ensuring proper installation and functionality. |
| Agricultural Machinery: | AS/NZS 2465 hex nuts are used in agricultural machinery and equipment for assembling components such as plows, harvesters, and irrigation systems. They provide reliable fastening solutions for agricultural operations, ensuring equipment durability and performance. |
