ASME/ANSI B 18.5 American Standard Round Head Square Neck Bolts Manufacturer In China

Ningbo Teng Qi Fasteners Co., Ltd are committed to producing high-quality ASME/ANSI B 18.5 American Standard Round Head Square Neck Bolts to provide customers with reliable connection solutions. We have advanced production equipment and a professional technical team, including wire drawing machines, cold heading machines, hot forging machines, automatic thread rolling machines, heat treatment equipment and electroplating production lines. These equipment ensure the efficiency and quality stability of our production process.

Product quality and performance are produced in strict accordance with the requirements of ASME/ANSI B 18.5 standards. Through precision processing technology and strict quality control, our Round Head Square Neck Bolts have excellent mechanical properties and stable dimensional accuracy, ensuring that they operate reliably in various application scenarios.

In addition, we also focus on the surface treatment of our products, using advanced electroplating technology and anti-corrosion coatings to ensure that our products have good corrosion resistance and beautiful appearance. Our Round Head Square Neck Bolts are suitable for various industries including construction, furniture making, automotive, machine building, electrical, etc., providing customers with diverse solutions.

ASMEANSI B 18.5 American Standard Zinc Plated Full Thread Round Head Square Neck Bolts

ASME ANSI B 18.5 American Standard Stainless Steel Partial Thread Round Head Square Neck Bolts

Specification of ASME/ANSI B 18.5 Round Head Square Neck Bolts:

The specification of ASME/ANSI B 18.5 American Standard Round Head Square Neck Bolts include the following details:

Product name	ASME/ANSI B 18.5 American Standard Round Head Square Neck Bolts
Thread Diameter:	#10-1“
Grade:	A307, SAE J429, F468, F593
Material:	Steel: Q195, Q235,C45,40CR,35CRMO,42CRMO Stainless Steel: SS304/SS316
Surface Treatment	Zinc Plated/Plain/Black Oxidation/HDG/Dacromet
Packaging:	Boxes/cartons into wooden pallets
MOQ:	500KG/Size

Dimension Chart of ASME/ANSI B 18.5 American Standard Round Head Square Neck Bolts:

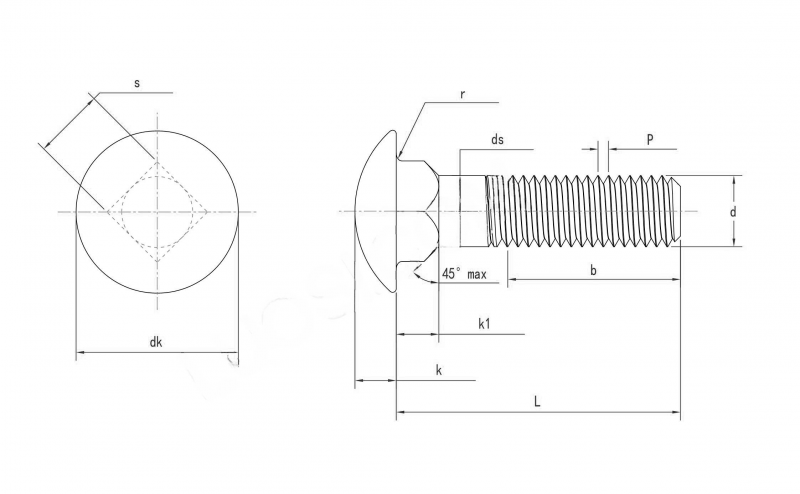

Inch Series ASME ANSI B 18.5 Round Head Square Neck Bolts Dimension Chart Drawing

Thread Diameter	#10	1/4	5/16	3/8	7/16	1/2	5/8	3/4	7/8	1
P	24\|32	20\|28\|32	18\|24\|32	16\|24\|32	14\|20\|28	13\|20\|28	11\|18\|24	10\|16\|20	9\|14\|20	8\|12\|20
ds max	0.199	0.26	0.324	0.388	0.452	0.515	0.642	0.768	0.895	1.022
ds min	0.159	0.213	0.272	0.329	0.385	0.444	0.559	0.678	0.795	0.91
dk max	0.469	0.594	0.719	0.844	0.969	1.094	1.344	1.594	1.844	2.094
dk min	0.436	0.563	0.688	0.782	0.907	1.032	1.219	1.469	1.719	1.969
k max	0.114	0.145	0.176	0.208	0.239	0.27	0.344	0.406	0.459	0.531
k min	0.094	0.125	0.156	0.188	0.219	0.25	0.313	0.375	0.438	0.5
s max	0.199	0.26	0.324	0.388	0.452	0.515	0.642	0.768	0.895	1.022
s min	0.185	0.245	0.307	0.368	0.431	0.492	0.616	0.741	0.865	0.99
k1 max	0.125	0.156	0.187	0.219	0.25	0.281	0.344	0.406	0.469	0.531
k1 min	0.094	0.125	0.156	0.188	0.219	0.25	0.313	0.375	0.438	0.5
r max	0.031	0.031	0.031	0.031	0.031	0.031	0.062	0.062	0.062	0.062

Application of ASME/ANSI B 18.5 American Standard Round Head Square Neck Bolts:

ASME/ANSI B 18.5 American Standard Round Head Square Neck Bolts are commonly used in various industries due to their unique design and reliable performance. Some of the primary applications of these bolts include:

Application	Details
Construction and Structural Engineering:	Round head square neck bolts are frequently used in the construction industry for wood-to-wood or wood-to-metal connections. They are commonly employed in timber framing, post-and-beam construction, and other structural applications where strong and secure connections are required.
Furniture Manufacturing:	These bolts are utilized in the assembly of furniture pieces such as chairs, tables, beds, and cabinets. Their square neck design prevents the bolt from rotating during installation, making them ideal for securing joints in wooden furniture assemblies.
Machinery and Equipment Manufacturing:	These bolts are used in the manufacturing of machinery and equipment for securing parts and components in assemblies. They are commonly employed in agricultural equipment, industrial machinery, and mechanical systems where reliable fastening is essential for operational efficiency and safety.
Electrical and Utility Installations:	Round head square neck bolts are utilized in electrical and utility installations for mounting electrical boxes, fixtures, and utility poles. They provide a secure and stable connection, ensuring the proper installation and functionality of electrical and utility infrastructure.
