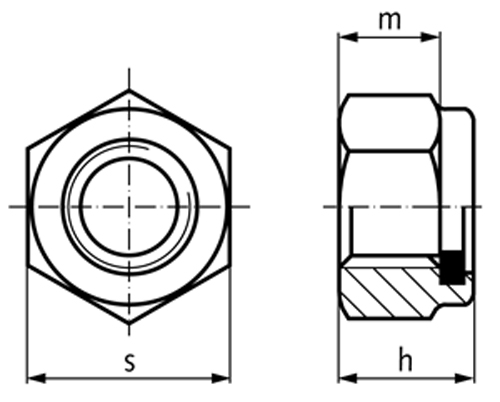

Dimension of DIN982 nylon nuts
| Dimension of din982 nylon nut | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
||||||||||||||
| Thread Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | M24 | M30 | M36 | |
| P | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 |
| s | max | 5.5 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 30 | 36 | 46 | 55 |
| min | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.16 | 35 | 45 | 53.8 | |
| h | max | 4.5 | 6.00 | 6.8 | 8.00 | 9.5 | 11.9 | 14.9 | 17.00 | 19.1 | 22.8 | 27.1 | 32.6 | 38.9 |
| min | 4.02 | 5.52 | 6.22 | 7.42 | 8.92 | 11.2 | 14.2 | 15.9 | 17.8 | 20.7 | 25.0 | 30.1 | 36.4 | |
| m | min | 2.15 | 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 16.9 | 20.2 | 24.3 | 29.4 |
