ASME/ANSI B18.8.1 American Standard Clevis Pins Manufacturer In China

Ningbo Teng Qi Fasteners Co., Ltd is a professional manufacturer the ASME/ANSI B18.8.1 American standard clevis pins in various industries. We have advanced production equipment, including cold heading machines, hot forging machines, high precision CNC lathes, CNC grinding machines, drill presses and heat treatment lines. These devices not only ensure the efficient production of products, but also ensure the quality and stability of products. In the manufacturing process, we operate in strict accordance with the standard requirements to ensure the accuracy and reliability of the products.

In addition to advanced production equipment, we have invested in quality control and testing. We are equipped with professional inspection equipment, such as tensile testing machines, metallographic analyzers and projectors, and have established a strict inspection process. These measures ensure that the quality of our products is stable and reliable, so that they meet the industry standards and customer needs. Our strict control of quality is one of the core values of our company, always customer satisfaction oriented, and strive to provide customers with the best quality products and services.

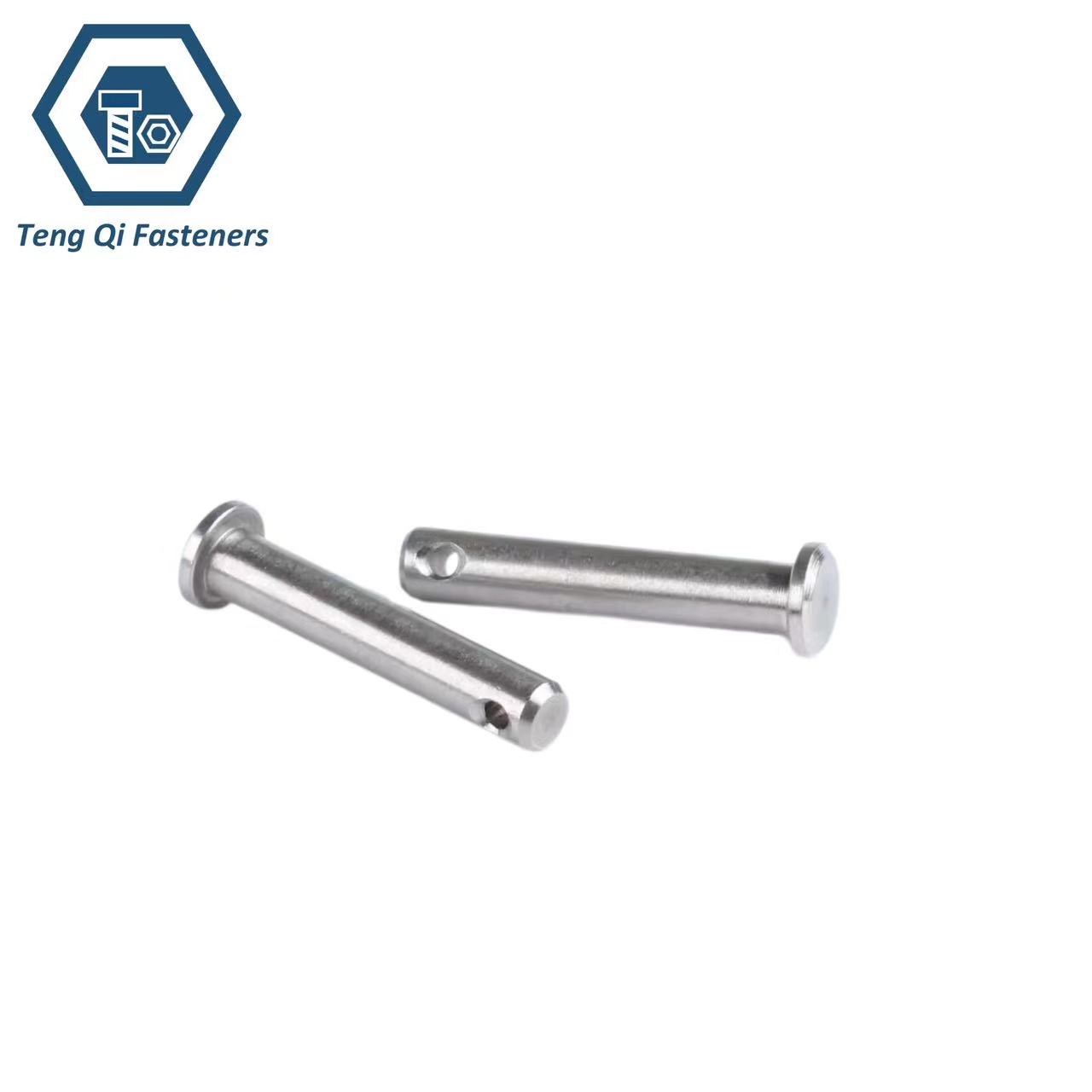

ASME ANSI B18.8.1 American Standard Stainless Steel Clevis Pins with Head

ASME ANSI B18.8.1 American Standard Zinc Plated Clevis Pins with Head

Specification of ASME/ANSI B18.8.1 American Standard Clevis Pins:

The specification of ASME/ANSI B18.8.1 American Standard Clevis Pins include the following details:

Product name	ASME/ANSI B18.8.1 Clevis Pins
Thread Diameter:	3/16“-2”
Material:	Steel: Q195, Q235,C45,40CR,35CRMO,42CRMO Stainless Steel: SS304/SS316
Surface Treatment	Zinc Plated/Plain/Black Oxidation/HDG/Dacromet
Packaging:	Boxes/cartons into wooden pallets
MOQ:	500KG/Size

RELATED PINS LISTS:
Clevis Pins
ASME B 18.2.2 Straight Pins
ASME B 18.2.2 Hardened Ground Dowel Pins

Dimension Chart of ASME/ANSI B18.8.1 American Standard Clevis Pins:

ASME B18.8.1 American Standard Clevis Pins Dimension Chart Drawing

Diameter	3/16	1/4	5/16	3/8	7/16	1/2	9/16	5/8	3/4	7/8
dk max	0.32	0.38	0.44	0.51	0.57	0.63	0.82	0.82	0.94	1.04
dk min	0.3	0.36	0.42	0.49	0.55	0.61	0.8	0.8	0.92	1.02
k max	0.07	0.1	0.1	0.13	0.16	0.16	0.21	0.21	0.26	0.32
k min	0.05	0.08	0.08	0.11	0.14	0.14	0.19	0.19	0.24	0.3
d1	0.094	0.094	0.156	0.156	0.156	0.156	0.156	0.156	0.156	0.219
d2 max	0.15	0.21	0.26	0.33	0.39	0.44	0.5	0.56	0.68	0.8
d2 min	0.14	0.2	0.25	0.32	0.38	0.43	0.49	0.55	0.67	0.79
L1	0.141	0.141	0.219	0.219	0.219	0.219	0.219	0.219	0.219	0.313
d max	0.186	0.248	0.311	0.373	0.436	0.496	0.558	0.621	0.746	0.871
d min	0.181	0.243	0.306	0.368	0.431	0.491	0.553	0.616	0.741	0.866

Diameter	1	1-1/8	1-1/4	1-3/8	1-1/2	1-5/8	1-3/4	1-7/8	2
dk max	1.19	1.36	1.5	1.77	2.02	2.2	2.14	2.27	2.4
dk min	1.17	1.33	1.47	1.73	1.98	2.16	2.1	2.23	2.36
k max	0.35	0.42	0.42	0.53	0.59	0.59	0.59	0.59	0.59
k min	0.33	0.33	0.33	0.44	0.5	0.5	0.5	0.5	0.5
d1	0.219	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25
d2 max	0.93	1.01	1.12	1.23	1.35	1.46	1.57	1.68	1.8
d2 min	0.92	1	1.11	1.22	1.34	1.45	1.56	1.67	1.79
L1	0.313	0.625	0.625	0.625	0.625	0.625	0.625	0.625	0.625
d max	0.996	1.15	1.26	1.375	1.5	1.625	1.75	1.875	2
d min	0.991	1.13	1.25	1.355	1.48	1.605	1.73	1.855	1.98

Application of ASME/ANSI B18.8.1 American Standard Clevis Pins:

ASME/ANSI B18.8.1 American Standard Clevis Pins find extensive applications in the following areas:

Application	Details
Mechanical Linkages：	Clevis pins are often used in mechanical linkages to connect rods, levers, or other components. They provide a secure and adjustable connection point, allowing for smooth movement and transfer of force.
Agricultural Machinery：	Clevis pins are utilized in agricultural machinery for connecting components such as hydraulic cylinders, lift arms, and steering linkages. Their strength and reliability make them ideal for heavy-duty applications in the field.
Construction Equipment：	In construction equipment, clevis pins are used for connecting hydraulic cylinders, buckets, and other components. Their ability to handle heavy loads and withstand harsh environments makes them essential for construction applications.
Industrial Machinery：	Clevis pins find applications in various types of industrial machinery for connecting moving parts, adjusting mechanisms, and securing components. They are often used in conveyor systems, material handling equipment, and processing machinery.
